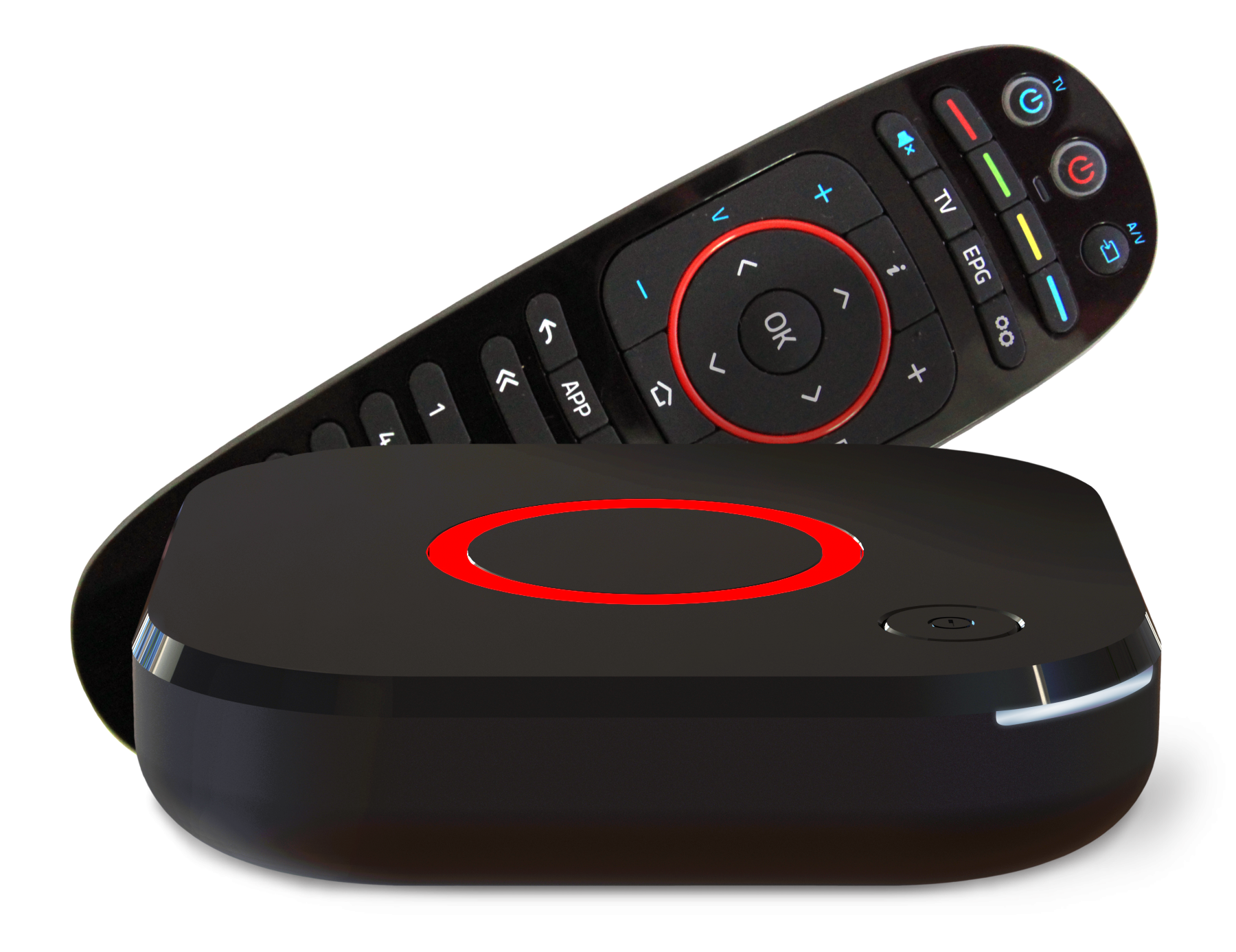

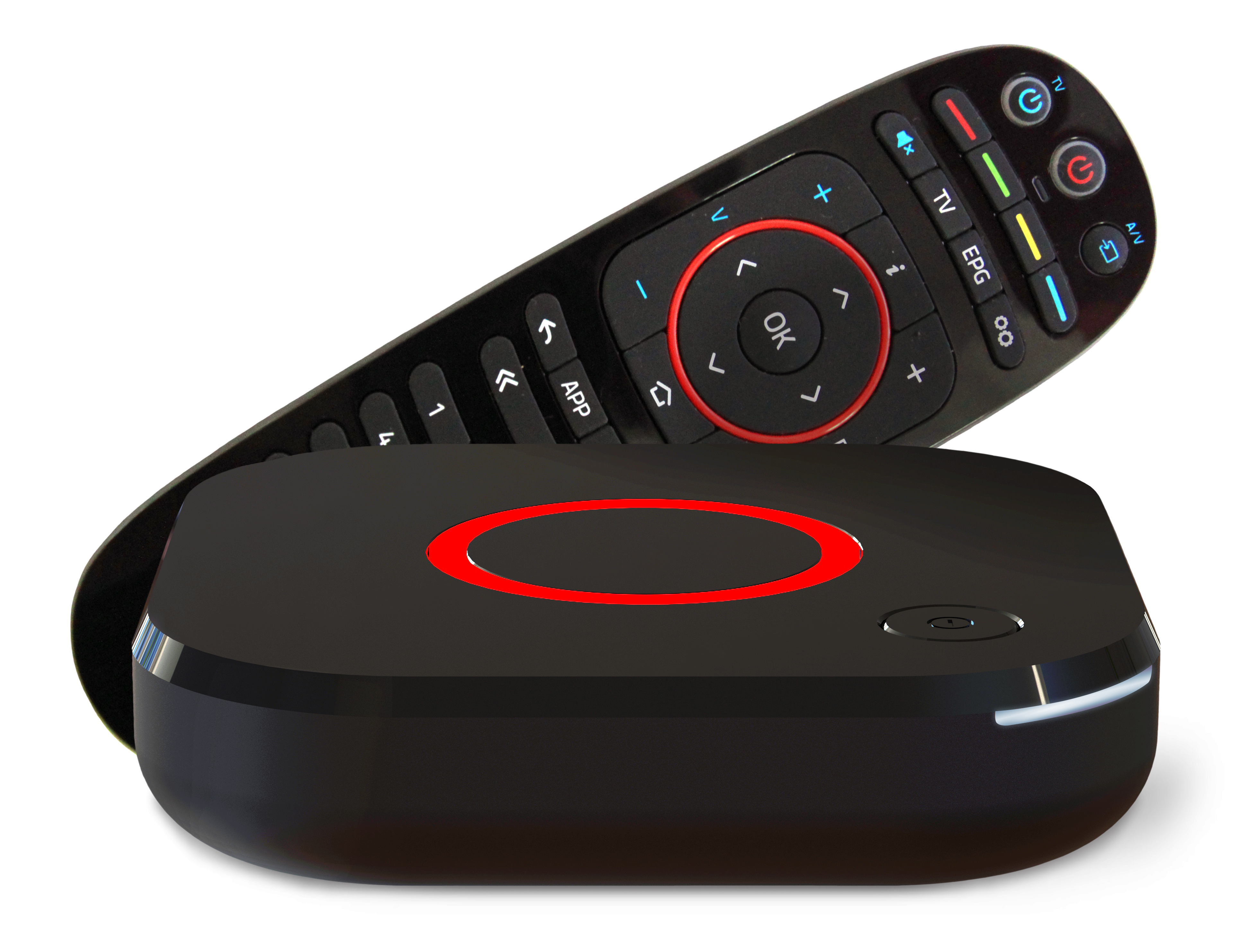

Name: MEDIALINK ML8100
SKU: MEDIALINK ML8100
Price: 75.00 EUR
Availability: OutOfStock

Decodificador /
Tienda /
MEDIALINK ML8100

Productos relacionados con: MEDIALINK ML8100

ESPECIFICACIONES

PROCESSOR
ARM Cortex-A7MP core processor
A high-performance, low-power and cached application processor.
Mali400MP, OpenGL ES1.1/2.0
BGA package

OPERATION SYSTEM
Android

MEMORY CONTROL INTERFACES
1GB DDR4 memory (Highly compressed as 3GB)
8GB EMMC flash memory
2x USB 2.0 interface / 1x USB 3.0 interface
Memory extension, Micro SD/TF card reader

BUILT-IN INTERFACES
WiFi built-in

SOFTWARE FEATURES
Automatic software upgrade function
Separate app upgrade function
IPTV - 4 S-IPTV portals, 6 X-IPTV portals
Anti Freezing option (switching codec)
Customized IPTV APK support
IP streaming player
Unicast + Mutlicast support
Auto Start Function (Last IPTV server memory function)
7 Days Full EPG support + Subtitle + Catch-up function support
VOD & TV Series support
Full 4K UHD 60fps streaming support
Video Player option (VLC or EXO)
Anti-freezing mode (Auto changing Codec)
Faster channel switch time
Web Interface support
SW update via FTP server or USB
Exclusive OTT SW support
Dolby support via HDMI
Language/Time/Date/location support

MULTIMEDIA FUNCTIONS
Netflix support
Amazon Prime support
DAZN support
KODI (Xbmc) add-on update & media player support
YouTube support
TED support
Google Play? & Apptoid support
Special IPTV apps (S-IPTV, X-IPTV etc)
DLNA support
M3U Player support
Game with Game handle support
2.4G wireless mouse/keyboard support
NFS support
Multicast support

OTHER INTERFACES
4K UHD via HDMI 2.0
AV Jack: CVBS video + Audio L/R stereo output
Ethernet: 10/100M RJ45
Multiple USB ports (V2.0)
OPTICAL: Optical for digital audio output
Video Decoding (HiVXE 2.0 Processing Engine)
4K 2K 10-bit H.265 @ 60 fps (Up to 200 Mbps)
4K 10-bit H.264 @ 30 fps (Up to 250 Mbps)
4K 8-bit VP9 @ 30 fps (Up to 200 Mbps)
1080p H.264 and VP8
Real-time video decoder of MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, MMU Embedded
Supports frame timeout interrupt, frame finish interrupt and bit stream error interrupt
Error detection and concealment support for all video formats
Output data format YUV420 semi-planar, YUV400 (monochrome), YUV422 is supported by H.264
H.264 10bit up to HP level 5.1: 2160P@60fps (4096x2304)
HEVC 10bit: 2160p @60fps (4096x2304)
MPEG-4 up to ASP level 5: 1080p@60fps (1920x1080)
MPEG-2 up to MP: 1080p@60fps (1920x1080)
MPEG-1 up to MP: 1080p@60fps (1920x1080)
H.263: 576p@60fps (720x576)
VC-1 up to AP level 3: 1080p@30fps (1920x1080)
VP8 : 1080p@60fps (1920x1080)
MVC : 1080p@60fps (1920x1080)
For H.264, image cropping not supported
For MPEG-4, GMC (global motion compensation) not supported
For VC-1, up-scaling and range mapping are supported in image post-processor
For MPEG-4 SP/H.263, using a modified H.264 in-loop filter to implement de-blocking filter in post-processor unit
Support video encoder for H.264 UP to HP@level4.1, MVC
Only support I and P slices, not B slices
Support error resilience based on constrained intra prediction and slices
Image size is from 96x96 to 1920x1080(Full HD)
Maximum frame rate is up to 1920x1080 @ 30FPS
Supports .mkv,.wmv,.mpg, .mpeg, .dat, .avi, .mov, .iso, .mp4, .rm and *.jpg file formats
JPEG image encoding
Input JPEG file : YCbCr 4:0:0, 4:2:0, 4:2:2, 4:4:0, 4:1:1 and 4:4:4 sampling formats
Output raw image: YCbCr 4:0:0, 4:2:0, 4:2:2, 4:4:0, 4:1:1 and 4:4:4 semi-planar
Decoder size is from 48x48 to 8176x8176(66.8Mpixels)
Support JPEG ROI (region of image) decode
Maximum data rate is up to 76million pixels per second
Supports JPEG thumbnail, scaling, rotation and transition effects
MJPEG and JPEG unlimited pixel resolution decoding

AUDIO ENCODING AND DECODING
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing

POWER SUPPLY
Input Voltage: 110V - 240V AC
Output Voltage: DC 5V (1.5A) Adaptor
Stand-By power consumption: <0.5W

AUDIO AND VIDEO INTERFACES
HDMI 2.0a output
Analog video interface
Digital and analog audio interfaces

PACKAGES & ENVIRONMENT
Size (WxDxH): 110mm x 110mm x 23mm
Working Environment : 5Â°C ~ 35Â°C?30%~ 90%Â Humidity
Storage Environment : -20Â°C ~ 60Â°C?10% ~ 90%Â Humidity

PACKING
Android OTT STB x 1
HDMI 1m cable x 1
DC 5V 1.5A adaptor x 1
RCU x 1
1.5V AAA battery x 2
USER Manual x 1
