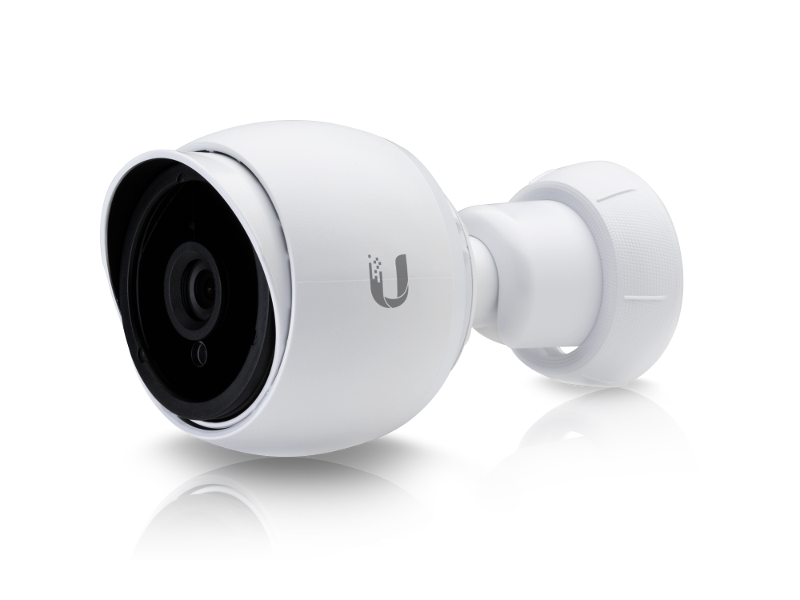

UVC-G3-Bullet / UVC-G3-AF

Dimensions

• 75 x 140 mm (Ø 2.95 x 5.51")

Weight

300 g (10.58 oz)

Enclosure

Injection-Molded Polycarbonate and Die-Cast Aluminum

Networking Interface

(1) 10/100 Ethernet Port

Sensor

1/3"4-MegapixelHDRSensor

Lens

EFL 3.6 mm, f/1.8

Night Mode

IR LEDs with Mechanical IR Cut Filter

Microphone

Yes

Button

Factory Reset Button

Power Method

802.3af PoE or 24V Passive PoE

Power Supply

802.3af PoE Switch

Maximum Power Consumption Standalone

With Optional IR Extender

4W

9W

Mounting

Wall/Ceiling/Pole

Operating Temperature

-20 to 50° C (-4 to 122° F)

Operating Humidity

20 - 90% Noncondensing

Video

Video Compression

H.264

Resolution

1080p Full HD (1920x1080)

Maximum Frame Rate

30 FPS

Image Settings

Brightness, Contrast, Sharpness, Saturation, Noise Reduction, 50/60 Hz

General

Viewing Angle

Before Lens Correction After Lens Correction

85°(H),44.8°(V),98.1°(D)

72°(H),42.9°(V),80.4°(D)

Supported UniFi Video Version

UniFi Video 3.8 (or Newer)

UniFiVideoSystemRequirements

64-bitMicrosoftWindows10/8/7,Ubuntu14.04or16.04,orDebian7.0Systemwith anIntelorCompatible1.86GHz(orAbove)ProcessorandaMinimumof4GBRAM
